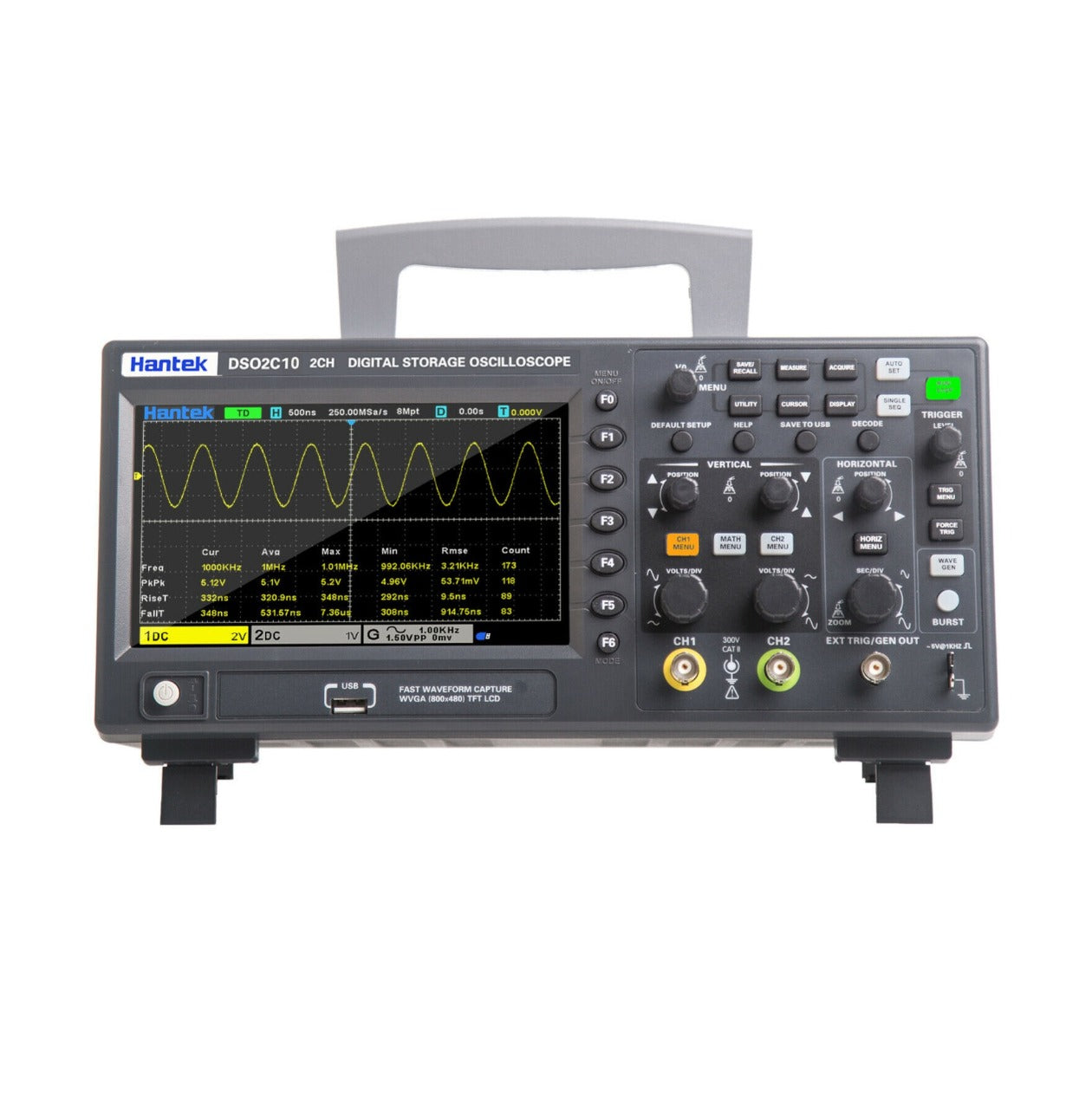

Hantek DSO2D10 TFT Digital Oscilloscope 2 Channel 100MHz with Function Generator - (AD70308)

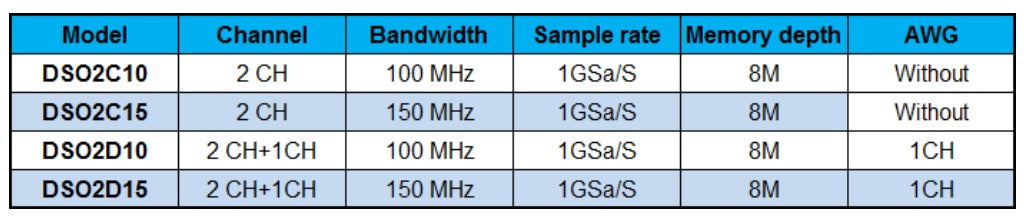

This DSO2000 Series cost-effective oscilloscope, 100MHz bandwidth, 1GSa/s, 8MB memory size, with 1-channel 25MHz waveform generator, supports arbitrary waveform output; 14 kinds of trigger modes, standard with 5 kinds of serial protocol triggers and decoders; 32 kinds of automatic measurements with statistics; 6-digit hardware frequency indicator and 3-digit digital voltage meter functions; 2 sets of DVM; abundant SCPI remote command control. It is a useful commissioning instrument for various fields such as communication, aerospace, national defense, embedded systems, computers, research and education.

Characteristics:

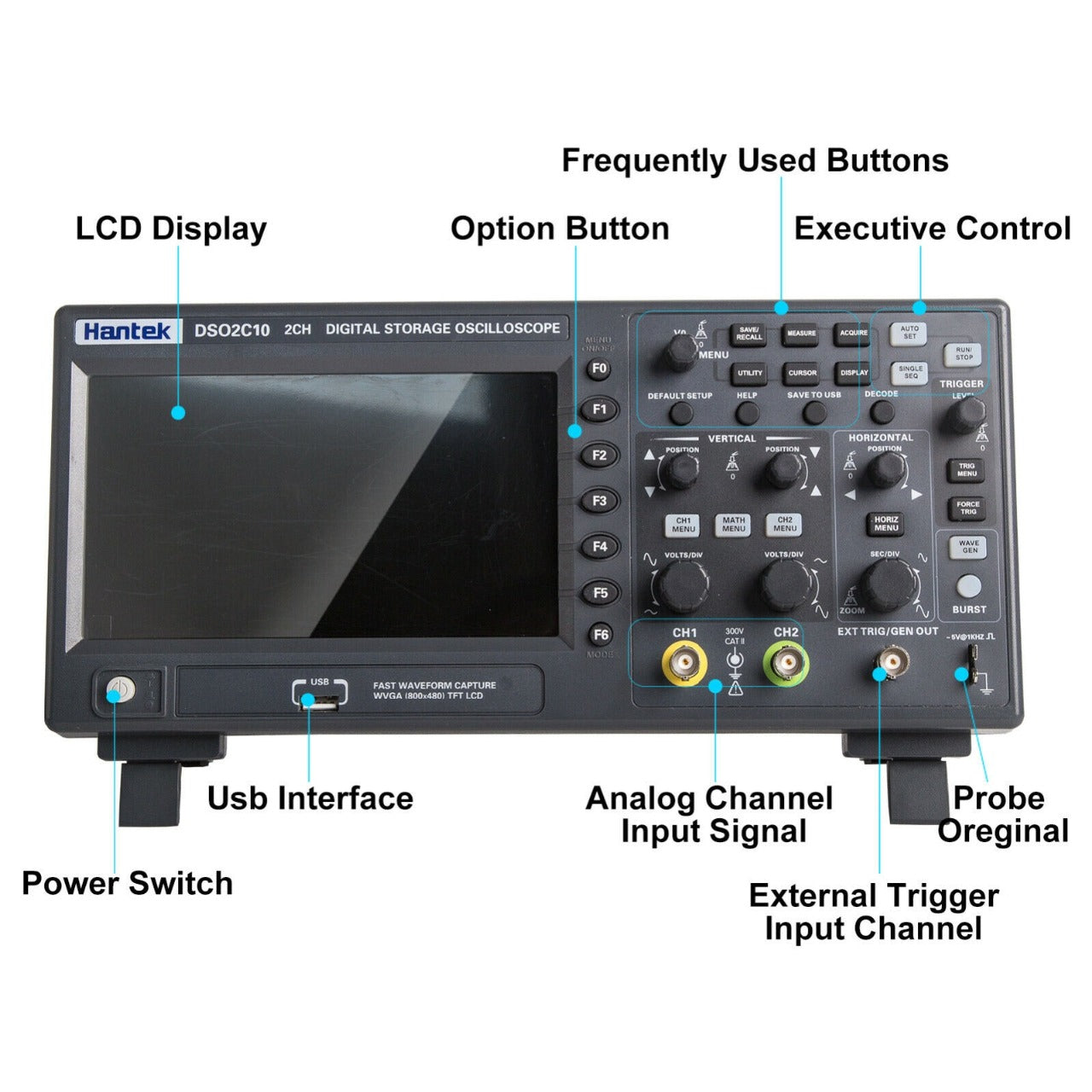

- 2 Channels that are respectively controlled by independent knobs

- 100 MHz analog channel bandwidth

- Sampling rate up to 1 GSa/s

- 8MB memory

- Vertical range 2mV/div ~ 10V/div

- Built-in 1 CH 25MHz waveform generator (DSO2D10, DSO2D15)

- Vertical resolution: 8 bits

- Activator: Edge, Pulse, Video, Slope, Overtime, Window, Pattern, Interval, Under Amp, UART, LIN, CAN, SPI, IIC

- BUS decoding and protocol analysis: RS232/UART, I2C, SPI, CAN, LIN

- Can save multiple data formats, such as settings, waveforms, reference waveforms, CSV, images

- A 3-digit digital voltage meter and a 6-digit hardware frequency indicator

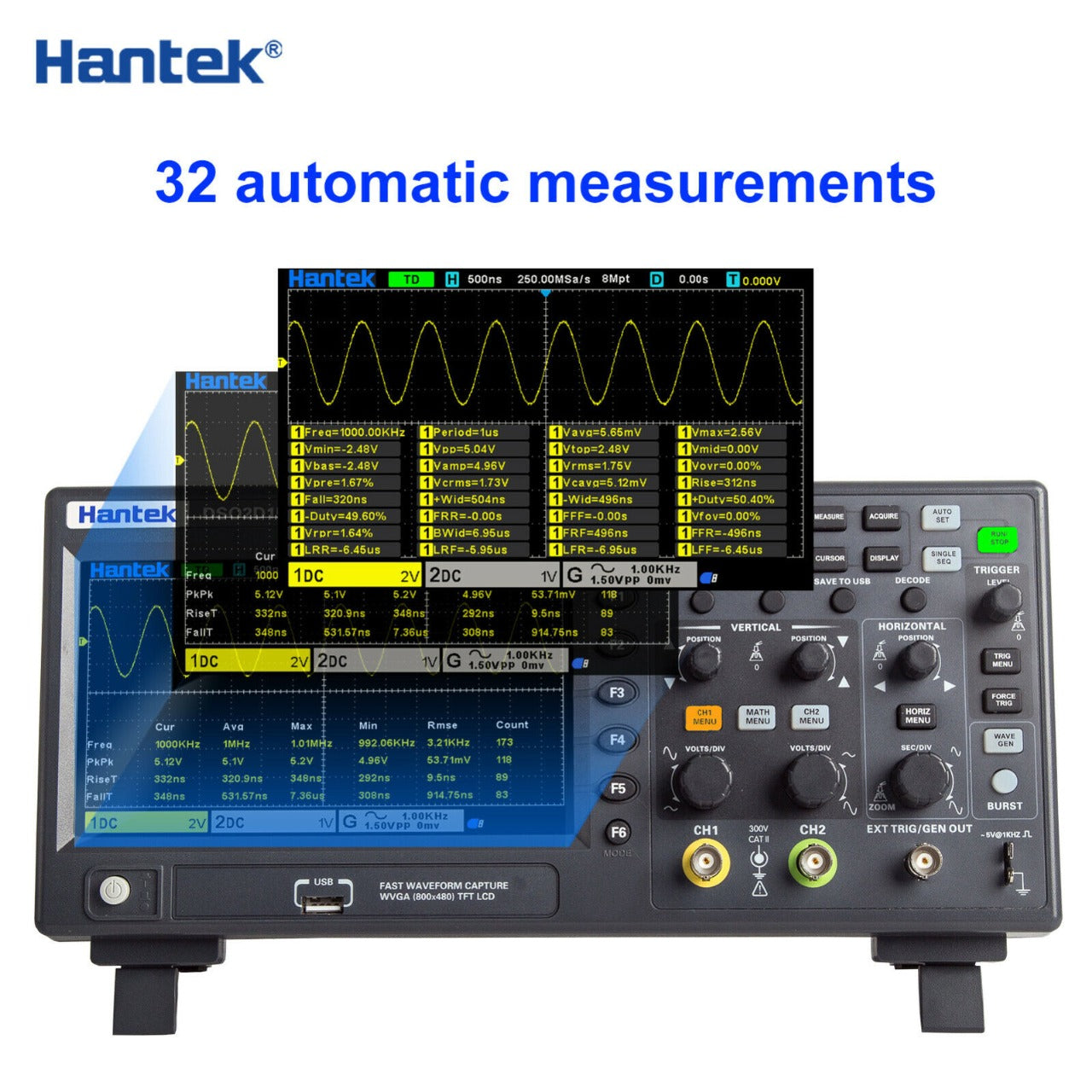

- 32 types of automatic measurements with statistics, real-time statistics of maximum, minimum, standard deviation, etc.

- 2 sets of digital voltmeters

- Supports threshold testing, free measurements within the screen

- Abundant SCPI remote command control

- USB Server/Device.

For more details see the following links:

hantek.com/products/detail/17182
